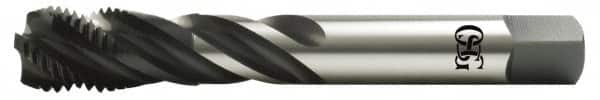

OSG - 5/8-18 UNF, 4 Flute, Oxide Finish High Speed Steel Fast Spiral Flute Tap
Item #: 66624974
Brand: OSG
Model #: 1301500401
Product Specifications
| Thread Size (Inch) | 5/8-18 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 100.00 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Oversize | No |
| Thread Length (Inch) | 1-13/16 |
| Flute Type | Fast Spiral |
| Series/List | 13015 |
| Tapping Depth (Decimal Inch) | 1.8125 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Material Application | Cast Iron; Hardened Steel; Steel |
