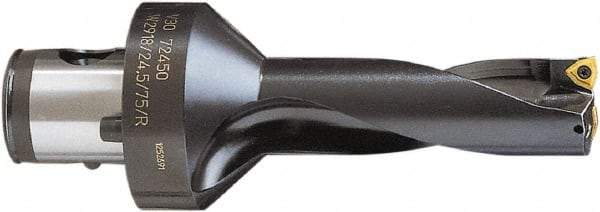

Komet - 172mm Max Drill Depth, 4xD, 43mm Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 66231879
Brand: Komet
Model #: V3094301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V30 |
| Drill Diameter (mm) | 43.00 |
| Drill Diameter (Decimal Inch) | 1.6929 |
| Maximum Drill Depth (mm) | 172.00 |
| Maximum Drill Depth (Decimal Inch) | 6.7717 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.7717 |
| Maximum Drill Diameter (mm) | 45.00 |
| Overall Length/Projection (mm) | 222.00 |
| Overall Length/Projection (Decimal Inch) | 8.7402 |
| Insert Compatibility | WOEX 06T304 |
| Body Length (Decimal Inch) | 8.7402 |
| Body Length (mm) | 222.00 |
| Series | KUB Trigon |
