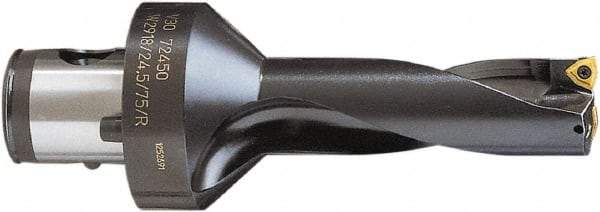

Komet - 148mm Max Drill Depth, 4xD, 37mm Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 66230830
Brand: Komet
Model #: V3093701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V30 |
| Drill Diameter (mm) | 37.00 |
| Drill Diameter (Decimal Inch) | 1.4567 |
| Maximum Drill Depth (mm) | 148.00 |
| Maximum Drill Depth (Decimal Inch) | 5.8268 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Maximum Drill Diameter (mm) | 40.00 |
| Overall Length/Projection (mm) | 198.00 |
| Overall Length/Projection (Decimal Inch) | 7.7953 |
| Insert Compatibility | WOEX 06T304 |
| Body Length (Decimal Inch) | 7.7953 |
| Body Length (mm) | 198.00 |
| Series | KUB Trigon |
