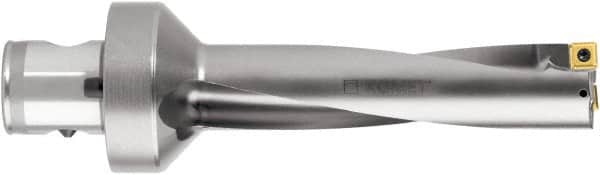

Komet - 108mm Max Drill Depth, 4xD, 26.5mm Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 66227984
Brand: Komet
Model #: U4452650
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U44 |
| Drill Diameter (mm) | 26.50 |
| Drill Diameter (Decimal Inch) | 1.0433 |
| Maximum Drill Depth (mm) | 108.00 |
| Maximum Drill Depth (Decimal Inch) | 4.2520 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (mm) | 27.00 |
| Overall Length/Projection (mm) | 142.00 |
| Overall Length/Projection (Decimal Inch) | 5.5906 |
| Insert Compatibility | SOGX 09T308 |
| Body Length (Decimal Inch) | 5.5906 |
| Body Length (mm) | 142.00 |
| Series | KUB Pentron |
