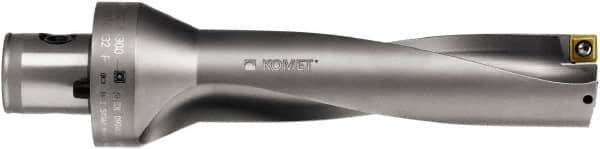

Komet - 4.961" Max Drill Depth, 3xD, 1-5/8" Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 66227406
Brand: Komet
Model #: U1154130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U11 |
| Drill Diameter (Inch) | 1-5/8 |
| Drill Diameter (Decimal Inch) | 1.6250 |
| Maximum Drill Depth (Decimal Inch) | 4.9610 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6450 |
| Overall Length/Projection (Decimal Inch) | 6.9290 |
| Insert Compatibility | SOEX 120508 |
| Body Length (Decimal Inch) | 6.9290 |
| Series | KUB Quatron |
