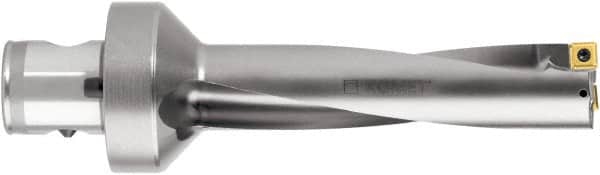

Komet - 160mm Max Drill Depth, 4xD, 39.2mm Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 66226358
Brand: Komet
Model #: U4463920
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U44 |
| Drill Diameter (mm) | 39.20 |
| Drill Diameter (Decimal Inch) | 1.5433 |
| Maximum Drill Depth (mm) | 160.00 |
| Maximum Drill Depth (Decimal Inch) | 6.2992 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5630 |
| Maximum Drill Diameter (mm) | 39.70 |
| Overall Length/Projection (mm) | 203.00 |
| Overall Length/Projection (Decimal Inch) | 7.9921 |
| Insert Compatibility | SOGX 120408 |
| Body Length (Decimal Inch) | 7.9921 |
| Body Length (mm) | 203.00 |
| Series | KUB Pentron |
