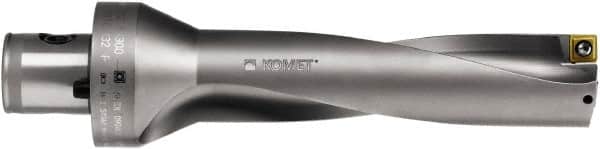

Komet - 102mm Max Drill Depth, 3xD, 34mm Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 66224668
Brand: Komet
Model #: U1153400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U11 |
| Drill Diameter (mm) | 34.00 |
| Drill Diameter (Decimal Inch) | 1.3386 |
| Maximum Drill Depth (mm) | 102.00 |
| Maximum Drill Depth (Decimal Inch) | 4.0157 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.3780 |
| Maximum Drill Diameter (mm) | 34.50 |
| Overall Length/Projection (mm) | 142.00 |
| Overall Length/Projection (Decimal Inch) | 5.5906 |
| Insert Compatibility | SOEX 120508 |
| Body Length (Decimal Inch) | 5.5906 |
| Body Length (mm) | 142.00 |
| Series | KUB Quatron |
