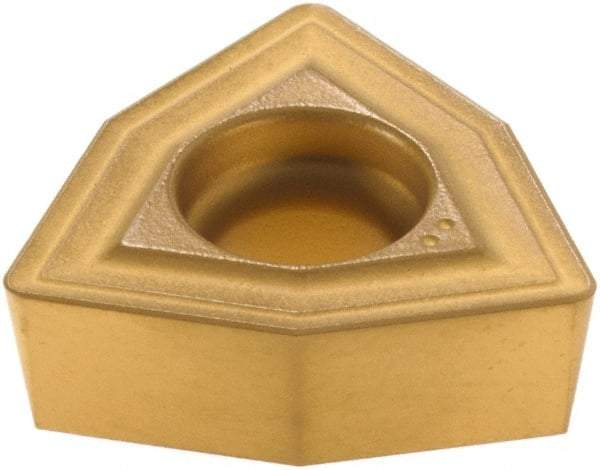

Komet - WOEX080408 01 Grade BK72 Carbide Indexable Drill Insert - TiCN/TiC/Al2O3/TiN Finish, Trigon, 12mm Inscribed Circle
Item #: 66193541
Brand: Komet
Model #: W29420100872
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOEX |
| Insert Size | 080408 |
| Material | Carbide |
| Manufacturer's Grade | BK72 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 4.80 |
| Thickness (Decimal Inch) | 0.1890 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Length (mm) | 7.90 |
| Length (Decimal Inch) | 0.3110 |
| Relief Angle | 8 |
| Included Angle | 84 |
| Coating | TiCN/TiC/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Chipbreaker | 01 |
