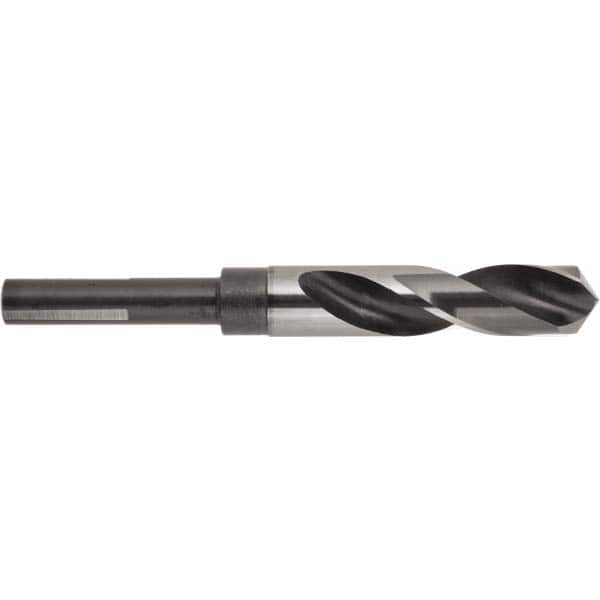

Reduced Shank Drill Bit: 63/64'' Dia, 1/2'' Shank Dia, 118 ™, High Speed Steel 6'' OAL, Bright/Uncoated Finish, Weldon Shank, RH Cut, Series 209F
Item #: 66122953
Brand: National Twist Drill
Model #: 017663AW
Product Specifications
| Drill Bit Size (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Tool Material | High Speed Steel |
| Drill Point Angle | 118 |
| Shank Type | Weldon |
| Overall Length (Inch) | 6 |
| Coating/Finish | Bright/Uncoated |
| Series | 209F |
| Number Of Flats | 3 |
| Drill Bit Size (Decimal Inch) | 0.9844 |
| Shank Diameter (Decimal Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Tool Application | Portable Drilling |
| Drill Length Type | Reduced Shank |
| Maximum Drilling Depth (Decimal Inch) | 3.0000 |
| Shank Length (Inch) | 2-1/4 |
| Shank Length (Decimal Inch) | 2.2500 |
| Coolant | No |
