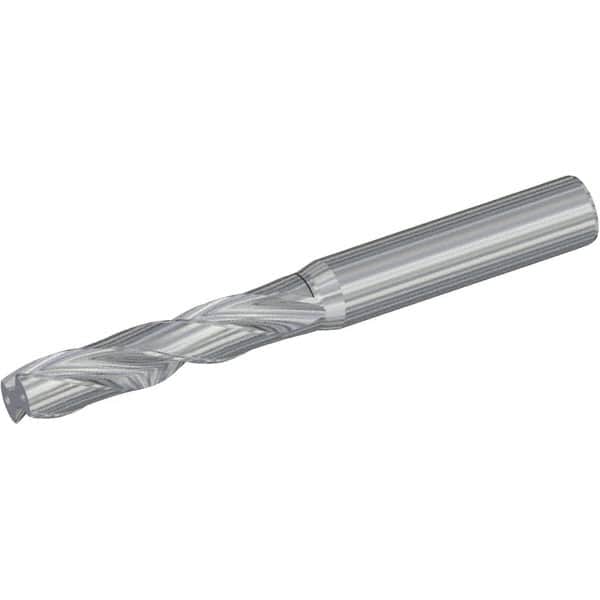

Kennametal - 15mm Solid Carbide Jobber Drill - Right Hand Cut, Spiral Flute, Straight Shank, 115mm OAL, Standard Point
Item #: 66100181
Brand: Kennametal
Model #: 2646000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 15.00 |
| Drill Bit Size (Decimal Inch) | 0.5906 |
| Drill Bit Material | Solid Carbide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 65.00 |
| Flute Length (Decimal Inch) | 2.5591 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Standard |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Maximum Drilling Depth (Decimal Inch) | 1.7717 |
| Maximum Drilling Depth (mm) | 45.00 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.007 to 0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | 0.0003 to 0.0100 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535; DIN 6537 |
| Series/List | B707A |
