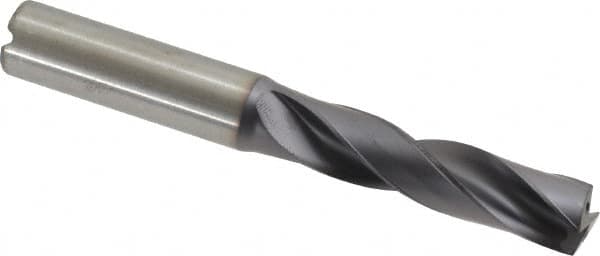

Kennametal - 12.8mm 180° Spiral Flute Solid Carbide Screw Machine Drill Bit - Right Hand Cut, 60mm Flute Length, 107mm OAL, Flat-Bottom Point, Straight Shank, Through Coolant
Item #: 66100157
Brand: Kennametal
Model #: 2636514
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5039 |
| Drill Bit Size (mm) | 12.80 |
| Drill Point Angle | 180 |
| Drill Bit Material | Solid Carbide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 60.00 |
| Overall Length (mm) | 107.00 |
| Point Type | Flat-Bottom |
| Shank Diameter (mm) | 14.00 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 43.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Specification Number | DIN 6537K |
| Web Thinning | Web-Thinned |
| Series/List | B707FBG |
