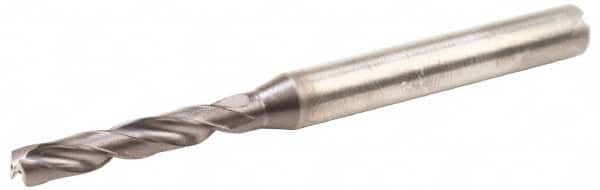

Screw Machine Length Drill Bit: 0.2953″ Dia, 180 °, Solid Carbide Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B707FBG
Item #: 66100140
Brand: Kennametal
Model #: 2634568
Product Specifications
| Drill Bit Size (mm) | 7.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle | 180 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Flat Bottom |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2953 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | B707FBG |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (mm) | 41.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Drill Bit Size Range (mm) | 6.50 to 8.00 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
