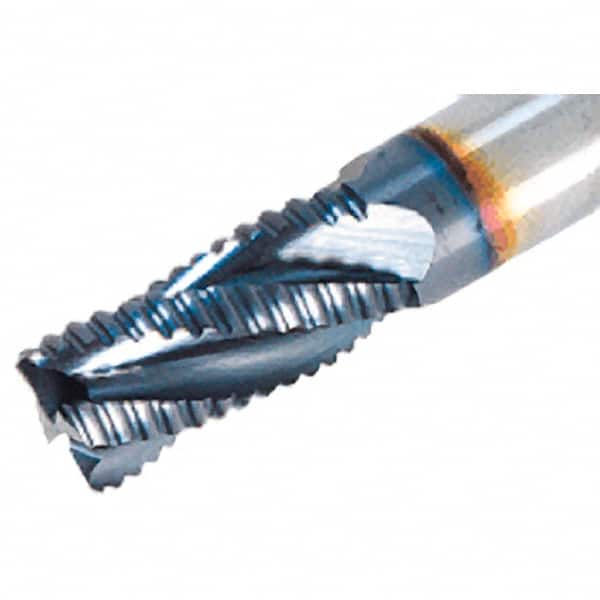

Iscar - 5/16" Diam, Fine Pitch, 5/8" LOC, 3 Flute Solid Carbide 45° Corner Chamfer Roughing End Mill - TiAlN Finish, 2-1/2" OAL, 5/16" Shank Diam, Single End, Extended Reach, 38° Helix
Item #: 66096645
Brand: Iscar
Model #: 5621023
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3130 |
| Number of Flutes | 3 |
| Pitch | Fine |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/16 |
| End Type | Corner Chamfer |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 38.00 |
| Extended Reach | Yes |
| Chamfer Width (Decimal Inch) | 0.0160 |
| Coolant Induced | No |
| Chamfer Angle | 45 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | High |
| Reach Length (mm) | 24 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
