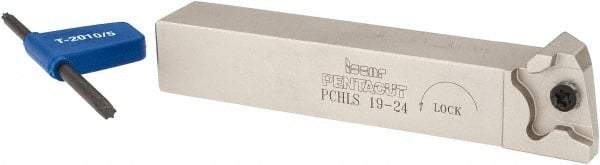

Iscar - External Thread, 0.256" Max Depth of Cut, 0.8mm Min Groove Width, 4.7" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, PENTA 24... Insert Style, PCHLS Toolholder Style, Series PentaCut
Item #: 65973026
Brand: Iscar
Model #: 2398793
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Minimum Groove Width (mm) | 0.80 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (Decimal Inch) | 4.7000 |
| Series | PentaCut |
| Toolholder Style | PCHLS |
| Insert Compatibility | PENTA 24... |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Head Height (Decimal Inch) | 0.9500 |
| Head Length (Decimal Inch) | 0.7700 |
| Shank Length (Decimal Inch) | 3.9500 |
| Complete Insert Compatibility | PENTA 24N-RS/LS |
