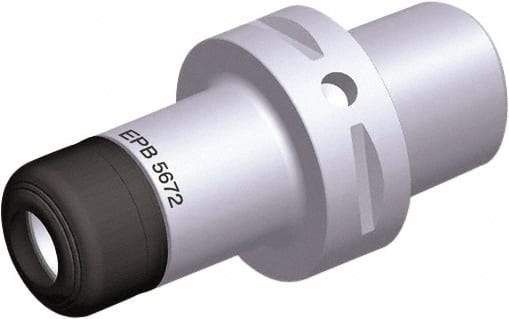

Seco - 2mm to 20mm Capacity, 3.937" Projection, Modular Connection, ER32 Collet Chuck - 5.827" OAL
Item #: 65941742
Brand: Seco
Model #: 09332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Modular Connection |
| Modular Connection Size | C8 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 20.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 5.8270 |
| Nose Diameter (Decimal Inch) | 1.9690 |
| PSC Code | 5136 |
| Balanced to (RPM) | 30000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9685 |
| Collet Nut Diameter (mm) | 50.00 |
