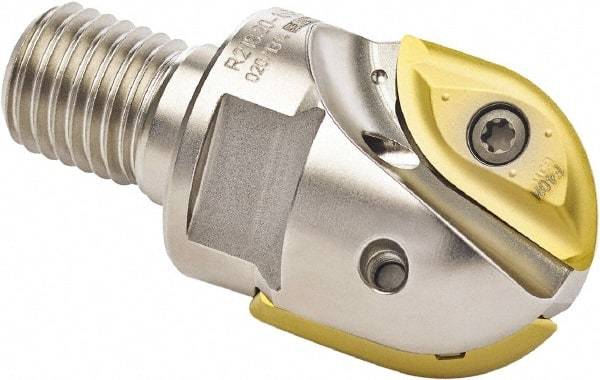

Seco - 19.99mm Cut Diam, 18.01mm Max Depth of Cut, Indexable Ball Nose End Mill - 35mm Head Length, M12 Modular Connection, R218.20 Toolholder, 218.20 100 Insert
Item #: 65836819
Brand: Seco
Model #: 07783
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.99 |
| Cutting Diameter (Decimal Inch) | 0.7870 |
| Maximum Depth of Cut (mm) | 18.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20 100 |
| Toolholder Style | R218.20 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Maximum RPM | 20200 |
