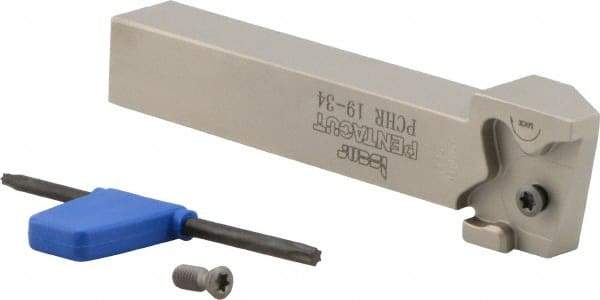

Iscar - External Thread, 0.394" Max Depth of Cut, 0.059" Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, PENTA 34.. Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 65806788
Brand: Iscar
Model #: 2302158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 5.0000 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | PENTA 34.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6800 |
| Complete Insert Compatibility | PENTA 34F239-0.15-22L; PENTA 34F239-0.15-22R; PENTA 34F247-0.20-22L; PENTA 34F247-0.20-22R; PENTA 34F300-0.40-22L; PENTA 34L150C08D; PENTA 34L150PB-6D; PENTA 34L200C06D; PENTA 34L200C15D; PENTA 34L200PB-6D; PENTA 34N150C015; PENTA 34N150PB015; PENTA 34N20 |
