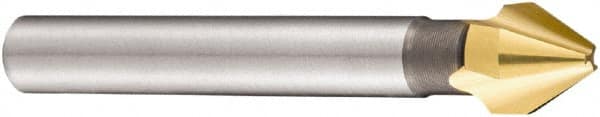

DORMER - 10mm Shank Diam, 3 Flute 60° High Speed Steel Countersink - TiN Finish, 63mm OAL, Single End, Straight Shank, Right Hand Cut
Item #: 65687980
Brand: DORMER
Model #: 0149584
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Number of Flutes | 3 |
| Included Angle | 60 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | TiN |
| Minimum Cutting Diameter (mm) | 4.00 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Maximum Cutting Diameter (Inch) | 5/8 |
| Overall Length (mm) | 63 |
| Overall Length (Decimal Inch) | 2.4822 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hardened Steel; Magnesium; Nickel; Nickel Alloy; Steel; Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloy |
