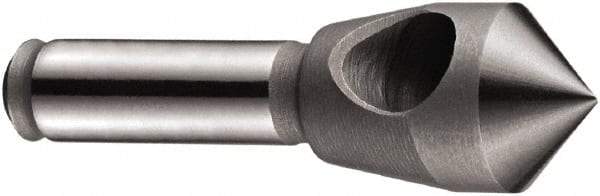

DORMER - 14mm Head Diam, 8mm Shank Diam, 1 Flute 90° Cobalt Countersink - Bright Finish, 48mm OAL, Single End, Straight Shank, Right Hand Cut
Item #: 65671265
Brand: DORMER
Model #: 0109038
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 14.00 |
| Head Diameter (Decimal Inch) | 0.5516 |
| Number of Flutes | 1 |
| Included Angle | 90 |
| Countersink Material | Cobalt |
| Countersink Finish/Coating | Bright |
| Minimum Cutting Diameter (mm) | 5.00 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3152 |
| Overall Length (mm) | 48 |
| Overall Length (Decimal Inch) | 1.8912 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloy |
| Material Application2 | Stainless Steel; Steel; Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloy |
