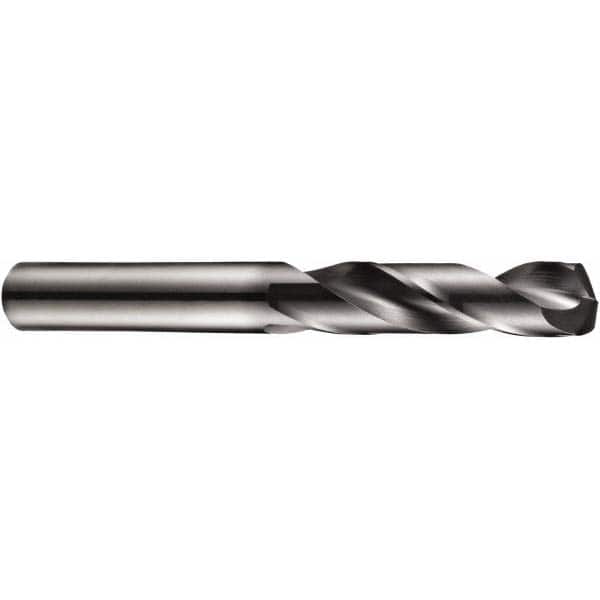

Screw Machine Length Drill Bit: 0.622″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Straight-Cylindrical Shank, Series R457
Item #: 65666430
Brand: DORMER
Model #: 5979106
Product Specifications
| Drill Bit Size (mm) | 15.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Point Type | Four Facet; Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6304 |
| Drill Bit Size (Decimal Inch) | 0.6220 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5310 |
| Shank Diameter (mm) | 16.00 |
| Series | R457 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Shank Length (Decimal Inch) | 1.8912 |
| Shank Length (mm) | 48.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Flute Length (Decimal Inch) | 2.5610 |
| Flute Length (mm) | 65.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 13.50 to 17.00 |
| Specification Designation | DIN |
