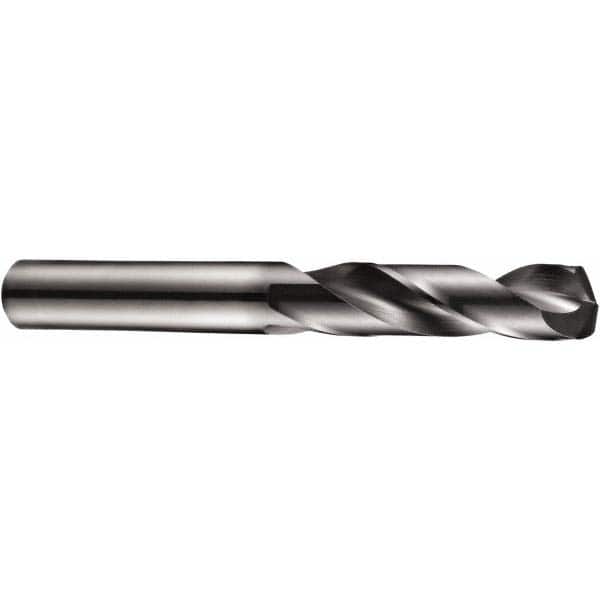

Screw Machine Length Drill Bit: 0.3858″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Straight-Cylindrical Shank, Series R458
Item #: 65665887
Brand: DORMER
Model #: 5980457
Product Specifications
| Drill Bit Size (mm) | 9.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Point Type | Four Facet; Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Drill Bit Size (Decimal Inch) | 0.3858 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5066 |
| Shank Diameter (mm) | 10.00 |
| Series | R458 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Shank Length (Decimal Inch) | 1.5760 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (Decimal Inch) | 1.8518 |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
| Specification Designation | DIN |
