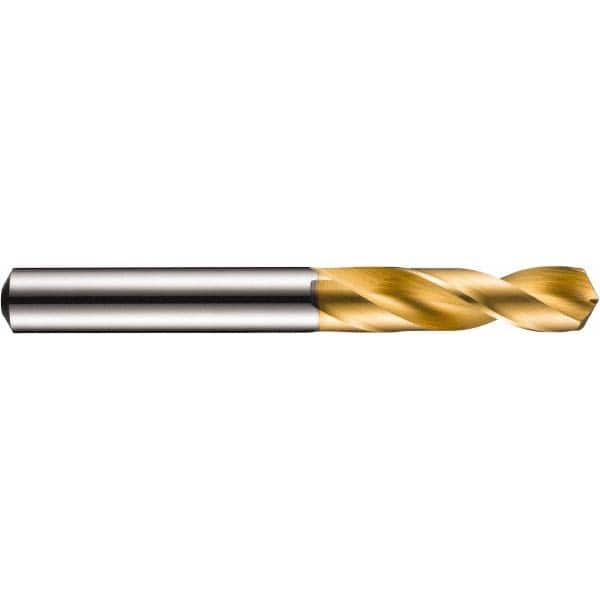

Screw Machine Length Drill Bit: 0.3425″ Dia, 130 °, Solid Carbide TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series R520
Item #: 65664583
Brand: DORMER
Model #: 5981150
Product Specifications
| Drill Bit Size (mm) | 8.70 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | CDX |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3425 |
| Drill Bit Size (Decimal Inch) | 0.3425 |
| Overall Length (mm) | 84.00 |
| Overall Length (Decimal Inch) | 3.3096 |
| Shank Diameter (mm) | 8.70 |
| Series | R520 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 2.5xD |
| Drill Bit Diameter Tolerance | 0.000 to -0.015 mm |
| Flute Length (Decimal Inch) | 1.5760 |
| Flute Length (mm) | 40.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
| Specification Number | DIN 6539 |
| Specification Designation | DIN |
