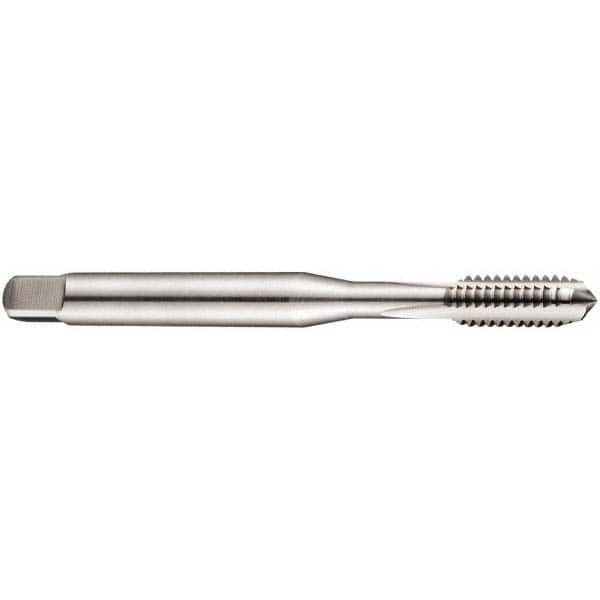

DORMER - #4-40 Bottoming RH 2B Bright Cobalt 3-Flute Straight Flute Machine Tap
Item #: 65651879
Brand: DORMER
Model #: 0086179
Product Specifications
| Tap Type | Machine Tap |
| Thread Size (Inch) | #4-40 |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 2.20640 |
| Overall Length (mm) | 56.00 |
| Oversize | No |
| Series/List | E225 |
| Thread Length (Decimal Inch) | 0.3546 |
| Thread Length (mm) | 9.00 |
| Tapping Depth (mm) | 18 |
| Shank Diameter (Decimal Inch) | 0.1379 |
| Shank Diameter (mm) | 3.50 |
| Square Size (Decimal Inch) | 0.1064 |
| Square Size (mm) | 2.70 |
| Material Application | Alloy Steel; Aluminum Alloys; Brass; Carbon Steel; Cast Iron; Copper Alloys; Hardened Steel; Steel; Structural Steel; Thermosetting Plastics |
