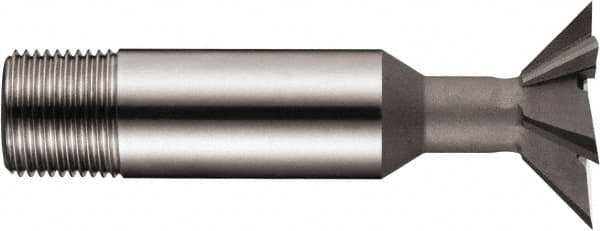

DORMER - 22mm Diam x 6.5mm Width of Cut, 45° Included Angle, High Speed Steel Dovetail Cutter - Uncoated
Item #: 65638405
Brand: DORMER
Model #: 0215753
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Included Angle | 45 |
| Cutting Diameter (mm) | 22.00 |
| Cutting Diameter (Decimal Inch) | 0.8661 |
| Cutting Width (Decimal Inch) | 0.2559 |
| Cutting Width (mm) | 6.500 |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Shank Diameter (mm) | 12.00 |
| Overall Length (mm) | 68.50 |
| Shank Length (mm) | 16.00 |
| Material Grade | M2 |
| Number of Teeth | 6 |
| Weldon Flat | No |
