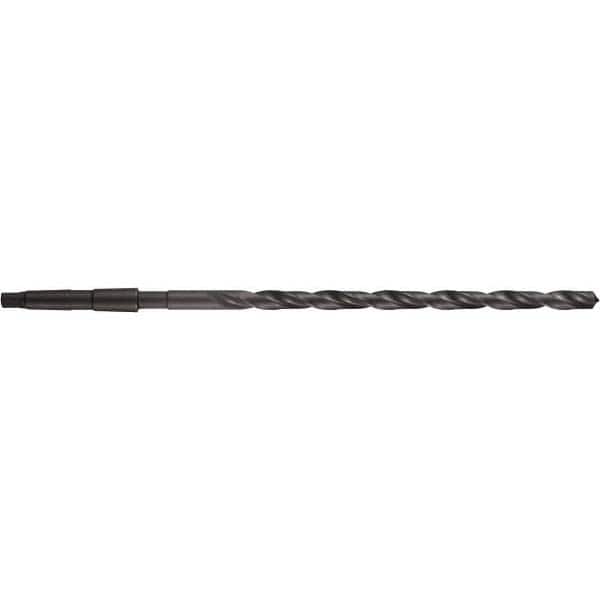

Taper Shank Drill Bit: 0.5512″ Dia, 1MT, 118 °, High Speed Steel Oxide Finish, 8.6614″ Flute Length, 12.7953″ OAL, Spiral Flute
Item #: 65629982
Brand: DORMER
Model #: 5968971
Product Specifications
| Drill Bit Size (mm) | 14.00 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 1MT |
| Overall Length (mm) | 325.00 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Flute Length (mm) | 220.00 |
| Drill Bit Size (Decimal Inch) | 0.5512 |
| Flute Length (Decimal Inch) | 8.6614 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 12.7953 |
| Series | A345 |
| Standards | DIN 1870-I |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | 0.000 to -0.027 mm |
