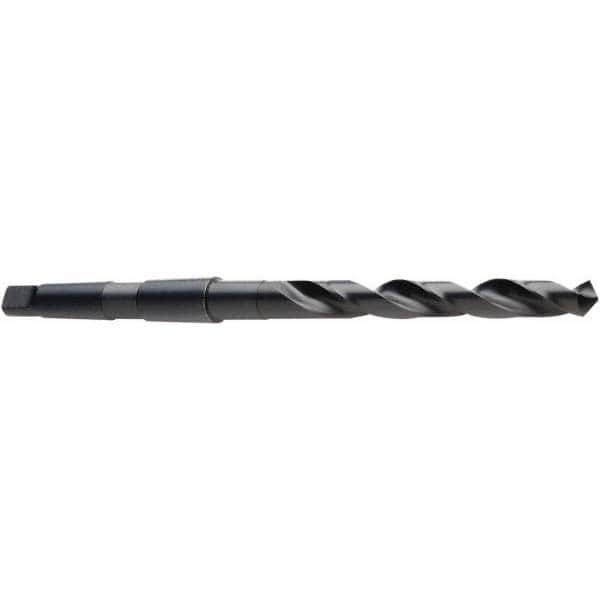

Taper Shank Drill Bit: 0.9844″ Dia, 3MT, 118 °, High Speed Steel Oxide Finish, 6.2992″ Flute Length, 11.2598″ OAL, Spiral Flute
Item #: 65629347
Brand: DORMER
Model #: 5969543
Product Specifications
| Drill Bit Size (Inch) | 63/64 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 3MT |
| Overall Length (mm) | 286.00 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Flute Length (mm) | 160.00 |
| Drill Bit Size (Decimal Inch) | 0.9844 |
| Flute Length (Decimal Inch) | 6.2992 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 11.2598 |
| Series | A130 |
| Standards | DIN 345 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | 0.000 to -0.033 mm |
