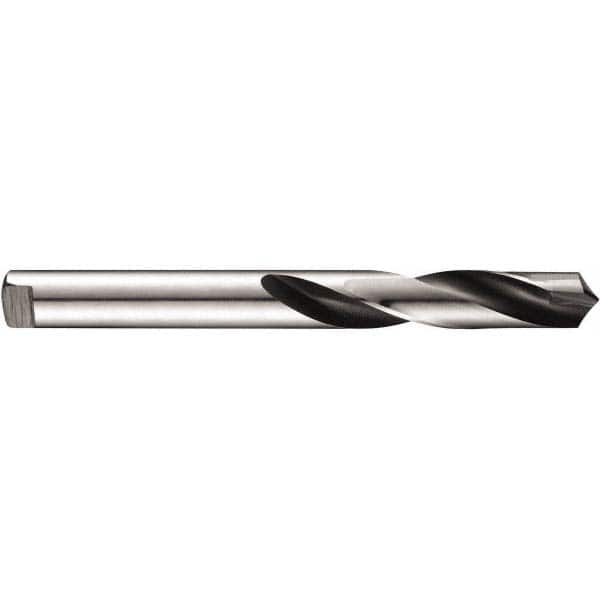

Screw Machine Length Drill Bit: 0.1772″ Dia, 118 °, Carbide Tipped Bright & Oxide Finish, Right Hand Cut, Spiral Flute, Tanged Shank, Series A124
Item #: 65624520
Brand: DORMER
Model #: 5968736
Product Specifications
| Drill Bit Size (mm) | 4.50 |
| Tool Material | Carbide Tipped |
| Cutting Direction | Right Hand |
| Coating/Finish | Oxide; Bright |
| Drill Point Angle | 118 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Four Facet |
| Coolant Through | No |
| Shank Type | Tanged |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4822 |
| Series | A124 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 2.5xD |
| Flute Length (Decimal Inch) | 1.1032 |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 to 5.00 |
| Specification Designation | DIN |
