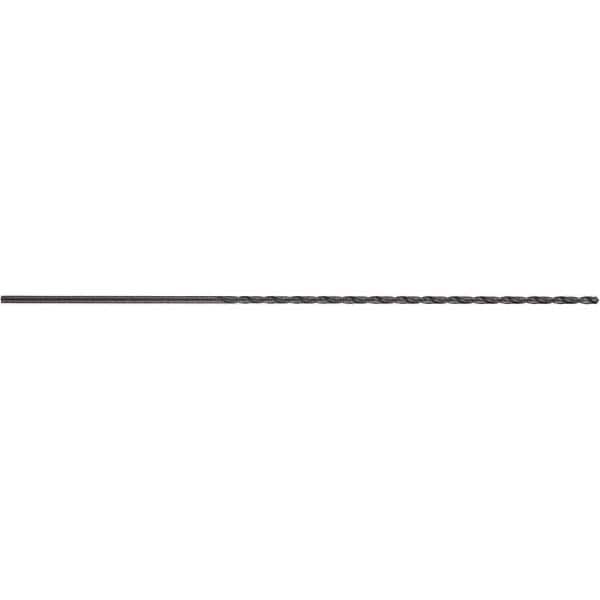

Extra Length Drill Bit: 0.5469″ Dia, 118 °, High Speed Steel Oxide Finish, 9.85″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series A125
Item #: 65623696
Brand: DORMER
Model #: 5968910
Product Specifications
| Overall Length (mm) | 315.00 |
| Flute Length (mm) | 250.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Drill Point Angle | 118 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Spiral |
| Series | A125 |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | 0.000 to -0.027 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.5469 |
| Shank Diameter (Decimal Inch) | 0.5469 |
| Shank Diameter (mm) | 13.89 |
| Shank Diameter (Decimal Inch) | 35/64 |
| Flute Length (Decimal Inch) | 9.8500 |
| Flute By Diameter Ratio | 10xD |
| Material Grade | M2 |
| Specification Designation | BS |
