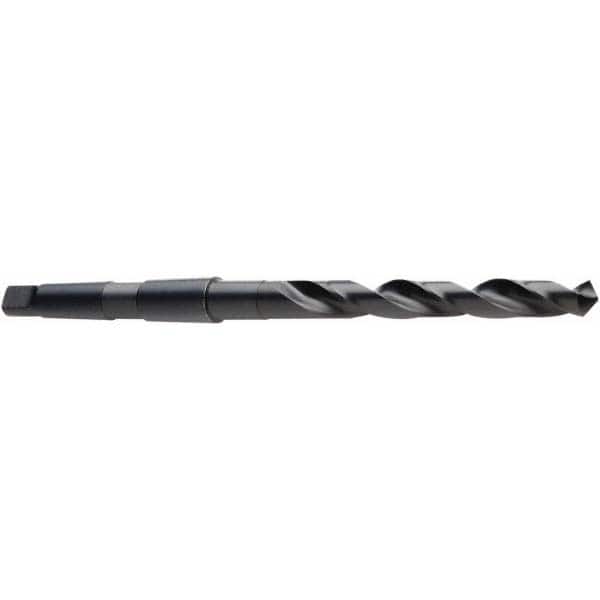

Taper Shank Drill Bit: 0.5472″ Dia, 1MT, 118 °, High Speed Steel Oxide Finish, 4.252″ Flute Length, 7.4409″ OAL, Spiral Flute
Item #: 65622714
Brand: DORMER
Model #: 5968951
Product Specifications
| Drill Bit Size (mm) | 13.90 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 1MT |
| Overall Length (mm) | 189.00 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Flute Length (mm) | 108.00 |
| Drill Bit Size (Decimal Inch) | 0.5472 |
| Flute Length (Decimal Inch) | 4.2520 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 7.4409 |
| Series | A130 |
| Standards | DIN 345 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | 0.000 to -0.027 mm |
