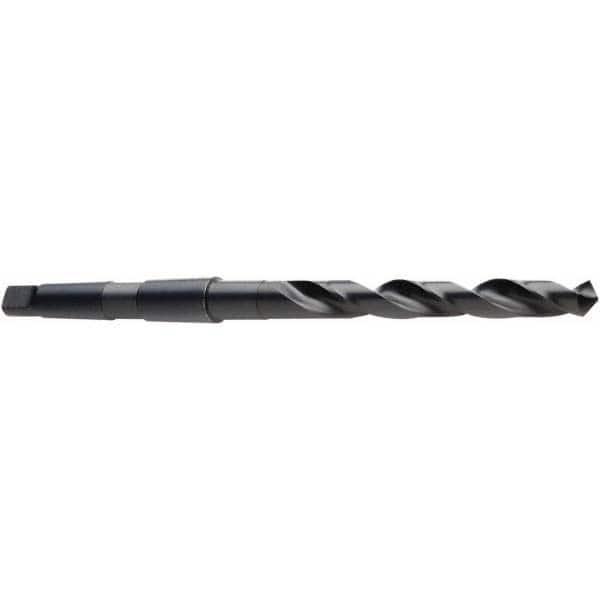

Taper Shank Drill Bit: 0.689″ Dia, 2MT, 118 °, High Speed Steel Oxide Finish, 5.1181″ Flute Length, 8.9764″ OAL, Spiral Flute
Item #: 65622425
Brand: DORMER
Model #: 5969040
Product Specifications
| Drill Bit Size (mm) | 17.50 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 2MT |
| Overall Length (mm) | 228.00 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Flute Length (mm) | 130.00 |
| Drill Bit Size (Decimal Inch) | 0.6890 |
| Flute Length (Decimal Inch) | 5.1181 |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 8.9764 |
| Series | A130 |
| Standards | DIN 345 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | 0.000 to -0.027 mm |
