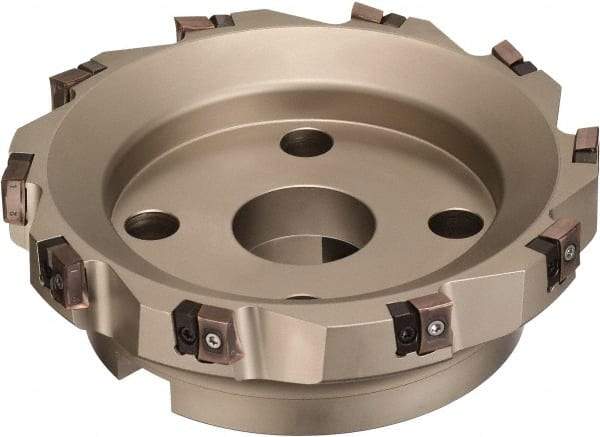

Sumitomo - 4" Cut Diam, 6mm Max Depth, 1-1/2" Arbor Hole, 7 Inserts, RDET12 Insert Style, Indexable Copy Face Mill - RSX Cutter Style, 2-1/2 High, Series RSX
Item #: 65535544
Brand: Sumitomo
Model #: 2200WD5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 101.60 |
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (mm) | 63.50 |
| Overall Height (Inch) | 2-1/2 |
| Overall Height (Decimal Inch) | 2.5000 |
| Series | RSX |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RDET12 |
| Cutter Style | RSX |
