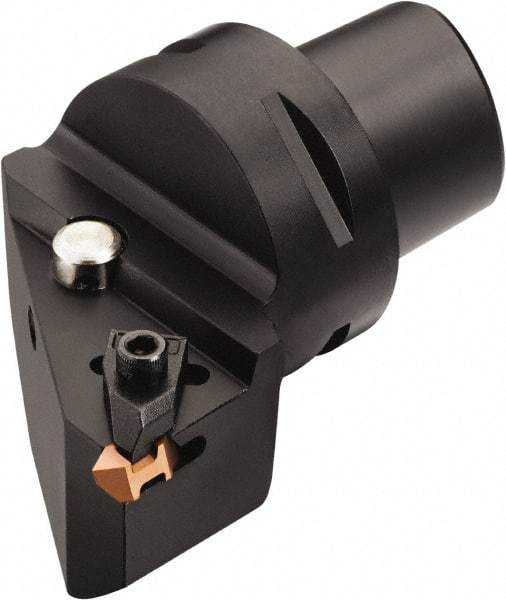

Sandvik Coromant - TLG-3189R Insert, 65.02mm Head Length, 0.5mm Min Groove Width, Modular Grooving Blade Holder Head - Right Hand Cut, System Size C6, Through Coolant, Series Top Lok
Item #: 65518342
Brand: Sandvik Coromant
Model #: 5729508
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Top Lok |
| Cutting Direction | Right Hand |
| Modular Head Style | Blade Holder Head |
| Insert Style | TLG-3189R |
| Head Length/Projection (mm) | 65.02 |
| Head Length/Projection (Decimal Inch) | 2.5600 |
| Blade Style Compatibility | 3 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 45.01 |
| Center to Cutting Edge (Decimal Inch) | 1.7720 |
| Maximum Groove Width (mm) | 4.80 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Complete Insert Compatibility | TLG-3189R |
| Minimum Groove Width (mm) | 0.50 |
| Minimum Groove Width (Decimal Inch) | 12.7000 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 161.2900 |
