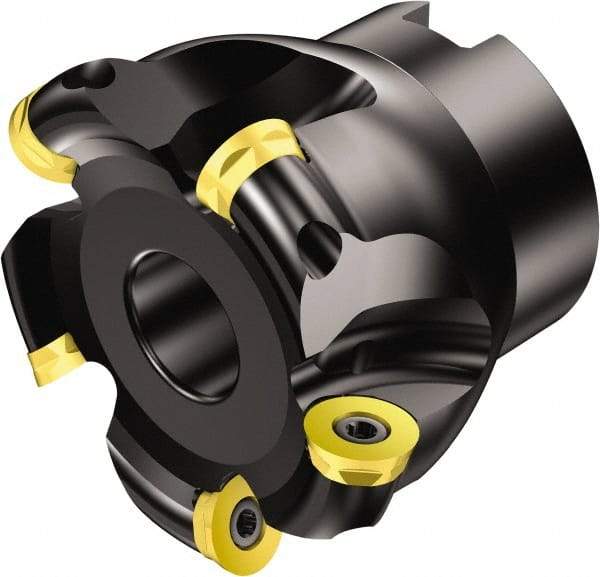

Sandvik Coromant - 5 Inserts, 2" Cutter Diam, 0.248" Max Depth of Cut, Indexable High-Feed Face Mill - 3/4" Arbor Hole Diam, 0.3209" Keyway Width, 1.9685" High, RA300..Rxx Toolholder, R300-1340.. Inserts, Series CoroMill 300
Item #: 65424483
Brand: Sandvik Coromant
Model #: 5738775
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | CoroMill 300 |
| Cutter Style | RA300..Rxx |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | R300-1340.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 14700 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-1340.. |
| Keyway Width (Decimal Inch) | 0.3209 |
| Manufacturers Catalog Number | 5738775 |
