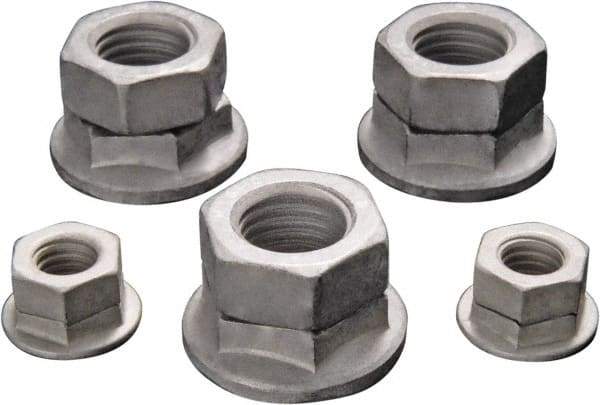

DISC-LOCK - 7/16-20 UNF Grade 8 Steel Free Spinning Hex Lock Nut - Magni 565 Finish
Item #: 65404774
Brand: DISC-LOCK
Model #: LN-7/16-20M-50
Exact Tooling IR#: 04
Features and Benefits
Hex lock nuts are the most common type of lock nut. They have six uniform sides that create a flat bearing surface.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Hex Lock Nut |
| Material | Steel |
| Thread Size | 7/16-20 |
| Height (Decimal Inch) | 0.69 |
| Material Grade | Grade 8 |
| Finish/Coating | Magni 565 |
| Thread Direction | Right Hand |
| Locking Style | Free Spinning |
| Flange Diameter (Decimal Inch) | 1.0000 |
| Thread Standard | UNF |
| Thread Fit Class | 2B |
| Military Specification | Does Not Meet Military Specifications |
