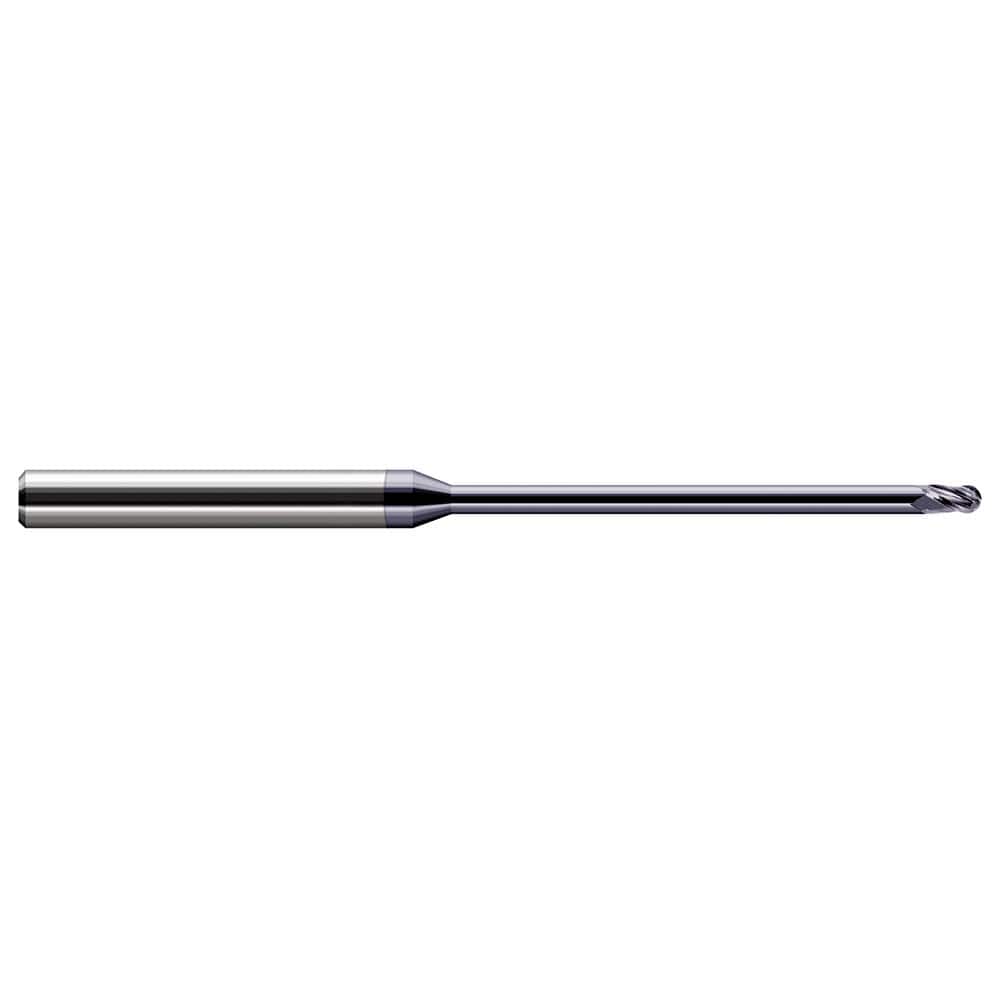

Ball End Mill: 0.25″ Dia, 0.375″ LOC, 4 Flute, Solid Carbide 6″ OAL, 1/4″ Shank Dia, 30 ° Helix, AlTiN Coated, Single End
Item #: 65400350
Brand: Harvey Tool
Model #: 14916-C3
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 3/8 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Reach Length (Inch) | 4-3/8 |
| Reach Length (Decimal Inch) | 4.3750 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
