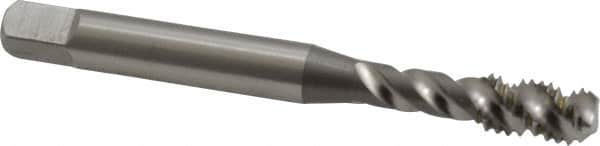

OSG - #10-24 UNC, 3 Flute, 50° Helix, Bottoming Chamfer, Bright Finish, High Speed Steel Spiral Flute STI Tap - Right Hand Flute, 2-3/8" OAL, 0.255" Shank Diam, 7/8" Thread Length
Item #: 65052821
Brand: OSG
Model #: 8007800
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-24 |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Inch) | 2-3/8 |
| Helix Angle | 50 |
| Thread Standard | UNC |
| Material | High Speed Steel |
| Flute Direction | Right Hand |
| Thread Length (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Material Application | Aluminum; Carbon Steel; Cast Iron; Hardened Steel |
