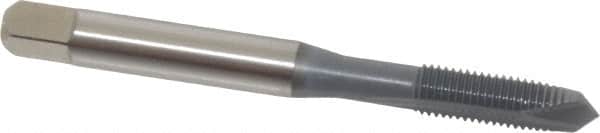

OSG - #10-32 UNF, H3, 2 Flutes, Plug Chamfer, elektraLUBE Finish, High Speed Steel Spiral Point STI Tap - 2-3/8" OAL, 7/8" Thread Length, Series 125
Item #: 65050833
Brand: OSG
Model #: 7010702
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
elektraLUBE prevents welding, loading and galling between the tap and the workpiece. It is commonly used on stainless steels, high nickel alloys, aluminum and copper. elektraLUBE is a proprietary coating exclusive to OSG Tap and Die, Inc.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Thread Limit | H3 |
| Number of Flutes | 2 |
| Chamfer | Plug |
| Finish/Coating | elektraLUBE |
| Overall Length (Inch) | 2-3/8 |
| Thread Standard | UNF |
| Material | High Speed Steel |
| Thread Length (Inch) | 7/8 |
| Series/List | 125 |
