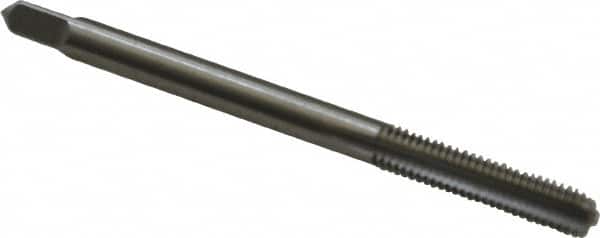

OSG - #4-40 UNC, H1, 3 Flute, Bottoming Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 1-7/8" OAL, 9/16" Thread Length, 0.11" Square Size, Series 126
Item #: 65032401
Brand: OSG
Model #: 6004600
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #4-40 |
| Thread Limit | H1 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Inch) | 1-7/8 |
| Thread Standard | UNC |
| Thread Length (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material | High Speed Steel |
| Material Application | Aluminum; Carbon Steel; Cast Iron; Hardened Steel |
| Series/List | 126 |
