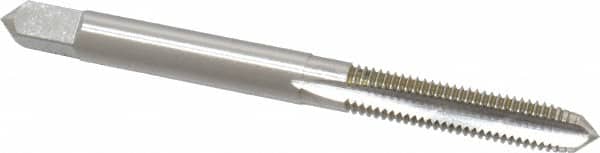

OSG - #8-32 UNC, H2, 3 Flute, Plug Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 2-1/8" OAL, 3/4" Thread Length, 0.131" Square Size, Series 126
Item #: 65028730
Brand: OSG
Model #: 6008100
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-32 |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Finish/Coating | Bright |
| Overall Length (Inch) | 2-1/8 |
| Thread Standard | UNC |
| Thread Length (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Size (Decimal Inch) | 0.1310 |
| Material | High Speed Steel |
| Material Application | Aluminum; Carbon Steel; Cast Iron; Hardened Steel |
| Series/List | 126 |
