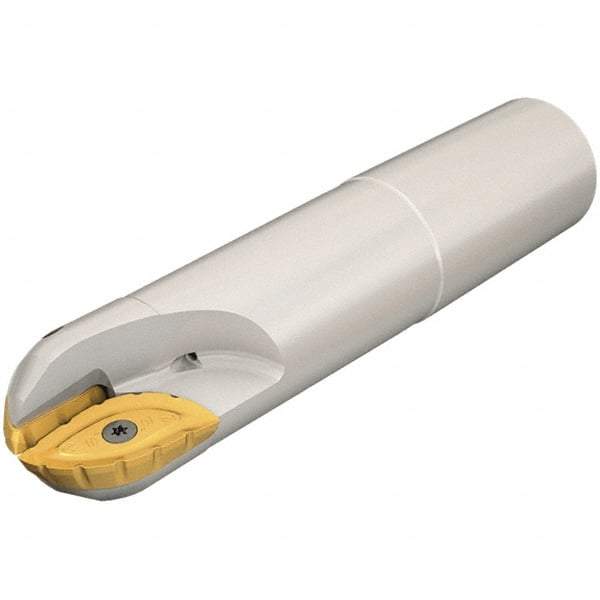

Iscar - 1/2" Cut Diam, 0.4" Max Depth of Cut, 5/8" Shank Diam, 6-1/2" OAL, Indexable Ball Nose End Mill - 2.4" Head Length, Straight Shank, BCM Toolholder, BCR... Insert
Item #: 64996291
Brand: Iscar
Model #: 3103435
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR... |
| Toolholder Style | BCM |
| Series | DropMill |
| Overall Length (Decimal Inch) | 6.5000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.4000 |
