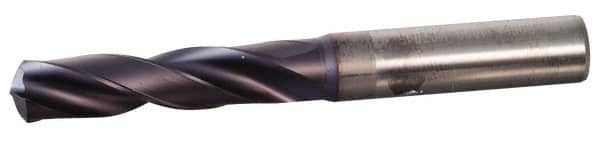

Kennametal - 0.5906" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - Right Hand Cut, 2.559" Flute Length, 4.528" OAL, Standard Point, Straight Shank
Item #: 64962715
Brand: Kennametal
Model #: 1913696
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5906 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Decimal Inch) | 2.5590 |
| Overall Length (Decimal Inch) | 4.5280 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Specification Designation | DIN |
| Maximum Drilling Depth (Decimal Inch) | 1.7717 |
| Spiral Type | Regular Spiral |
| Shank Length (Decimal Inch) | 1.8898 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Point Length (Decimal Inch) | 0.1020 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Specification Number | DIN 6535K |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Dynapoint High Performance |
| Material Grade | KC7315 |
| Series/List | B966F |
