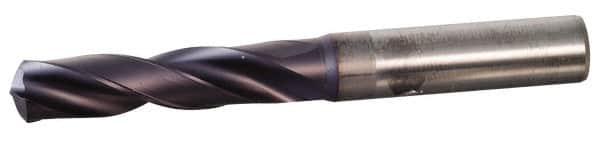

Screw Machine Length Drill Bit: 0.5512″ Dia, 140 °, Solid Carbide Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B966F
Item #: 64962699
Brand: Kennametal
Model #: 1913693
Product Specifications
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Drill Bit Size (Decimal Inch) | 0.5512 |
| Overall Length (Decimal Inch) | 4.2130 |
| Series | B966F |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (Decimal Inch) | 0.0950 |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Flute Length (Decimal Inch) | 2.3620 |
| Drill Bit Grade | Dynapoint High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Specification Number | DIN 6535K |
| Specification Designation | DIN |
| Material Grade | KC7315 |
