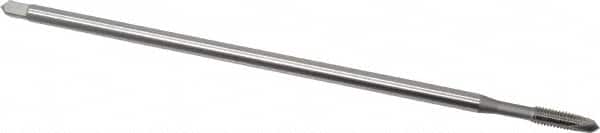

OSG - #10-32 UNF 2 Flute H3 Bright Finish High Speed Steel Spiral Point Extension Tap - Plug Chamfer, 6" OAL, 7/8" Thread Length, 2B/3B Class of Fit
Item #: 64955842
Brand: OSG
Model #: 1294800
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Spiral point taps are used for tapping through holes. They have a flute geometry that shoots chips ahead of the cutting action to reduce loading and clogging within the flute.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size | #10-32 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.000 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class of Fit | 2B/3B |
| Number of Flutes | 2 |
| Tap Type | Spiral Point |
| Finish/Coating | Bright |
| Flute Direction | Right Hand |
| Thread Standard | UNF |
| Material | High Speed Steel |
| Thread Length (Inch) | 7/8 |
| Thread Direction | Right Hand |
| Neck Length (Decimal Inch) | 0.8740 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Size (Decimal Inch) | 0.1520 |
| Material Application | Aluminum; Carbon Steel; Cast Iron; Hardened Steel |
| Shank Size Type | Reduced |
