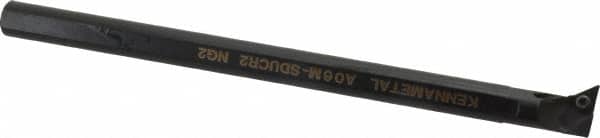

Kennametal - 15.24mm Min Bore Diam, 152.4mm OAL, 3/8" Shank Diam, A-SDUC Indexable Boring Bar - DC.. Insert, Screw Holding Method
Item #: 64926397
Brand: Kennametal
Model #: 1328616
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDUC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 15.24 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | DC.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -3 |
| Back of Bar to Cutting Edge (mm) | 9.53 |
| Center to Cutting Edge (Decimal Inch) | 0.3750 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/8 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Complete Insert Compatibility | DC.. 21.51 |
| Toolholder Material | Steel |
