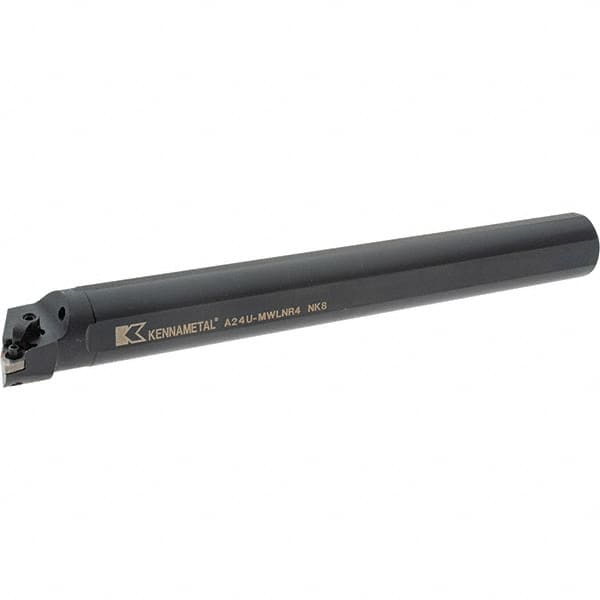

Kennametal - 44.7mm Min Bore Diam, 14" OAL, 1-1/2" Shank Diam, A-UMWLN Indexable Boring Bar - WN.. Insert, Screw or Clamp Holding Method
Item #: 64925969
Brand: Kennametal
Model #: 1095796
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-UMWLN |
| Series | Kenloc |
| Minimum Bore Diameter (mm) | 44.70 |
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 355.60 |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | WN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (mm) | 22.61 |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | WN.. 432 |
| Toolholder Material | Steel |
