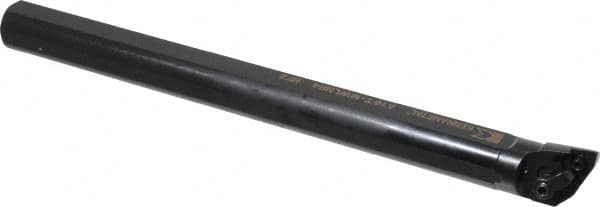

Kennametal - 30.99mm Min Bore Diam, 12" OAL, 1" Shank Diam, A-TMWLN Indexable Boring Bar - WN.. Insert, Screw or Clamp Holding Method
Item #: 64925951
Brand: Kennametal
Model #: 1095795
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-TMWLN |
| Series | Kenloc |
| Minimum Bore Diameter (mm) | 30.99 |
| Minimum Bore Diameter (Decimal Inch) | 1.2200 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | WN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (mm) | 16.26 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | WN.. 432 |
| Toolholder Material | Steel |
