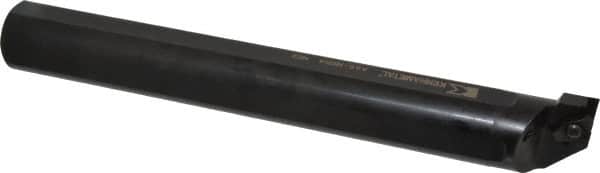

Kennametal - 63.5mm Min Bore Diam, 14" OAL, 1-3/4" Shank Diam, A-NE Indexable Boring Bar - N. Insert, Clamp Holding Method
Item #: 64925936
Brand: Kennametal
Model #: 1094847
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-NE |
| Series | Top Notch |
| Minimum Bore Diameter (mm) | 63.50 |
| Minimum Bore Diameter (Decimal Inch) | 2.5000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 355.60 |
| Overall Length (Inch) | 14 |
| Shank Diameter (mm) | 44.45 |
| Shank Diameter (Inch) | 1-3/4 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Insert Compatibility | N. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | N.4L |
| Toolholder Material | Steel |
