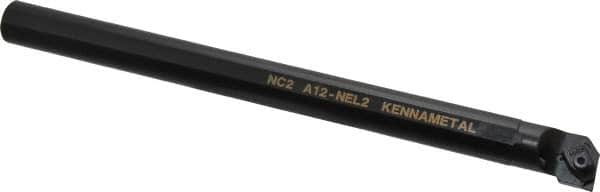

Kennametal - 28.58mm Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-NE Indexable Boring Bar - N. Insert, Clamp Holding Method
Item #: 64925878
Brand: Kennametal
Model #: 1094832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-NE |
| Series | Top Notch |
| Minimum Bore Diameter (mm) | 28.58 |
| Minimum Bore Diameter (Decimal Inch) | 1.1250 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | N. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Complete Insert Compatibility | N.2R |
| Toolholder Material | Steel |
