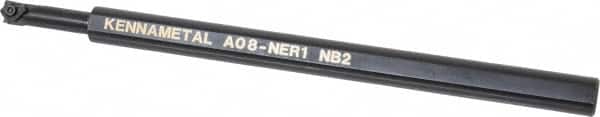

Kennametal - 11.18mm Min Bore Diam, 8" OAL, 1/2" Shank Diam, A-NE Indexable Boring Bar - 1" Max Bore Depth, N. Insert, Clamp Holding Method
Item #: 64925829
Brand: Kennametal
Model #: 1094827
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-NE |
| Series | Top Notch |
| Minimum Bore Diameter (mm) | 11.18 |
| Minimum Bore Diameter (Decimal Inch) | 0.4400 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Inch) | 1 |
| Overall Length (mm) | 203.20 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | N. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.2580 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Complete Insert Compatibility | N.1L |
| Toolholder Material | Steel |
