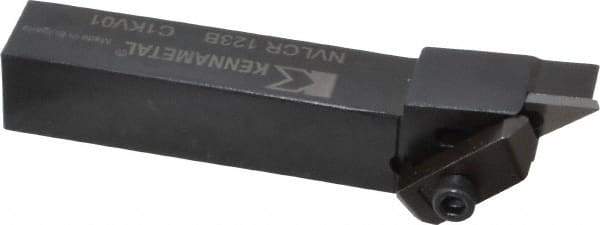

Kennametal - VP.., -5° Lead Angle NVLC External Right Hand Indexable Profiling Toolholder - 19.05mm Shank Height x 19.05mm Shank Width, 114.3mm Long, Steel
Item #: 64922867
Brand: Kennametal
Model #: 1097118
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | VP.. |
| Toolholder Style | NVLC |
| Series | Top Notch |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Insert Holding Method | Clamp |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Head Length (mm) | 36.53 |
| Head Length (Decimal Inch) | 1.4400 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | VP.. 332 |
